Automatic Drum Crusher Set
Drum Crushers · Sinobaler SVB2-MD-400A
Conveyor-fed drum crusher that loads, crushes and ejects drums automatically, saving labour.
POA — price on application
Enquire about this machine Client sign-in for prices
Got an old machine? Trade it in towards this one →
Not sure this is the right machine? Try our baler selector →
New machine with a 12-month warranty, serviced and supported by our own engineers.
Made to order: ask us about lead times, options, delivery and installation.
About this machine

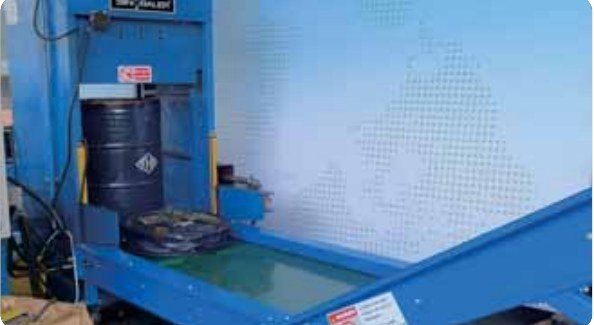

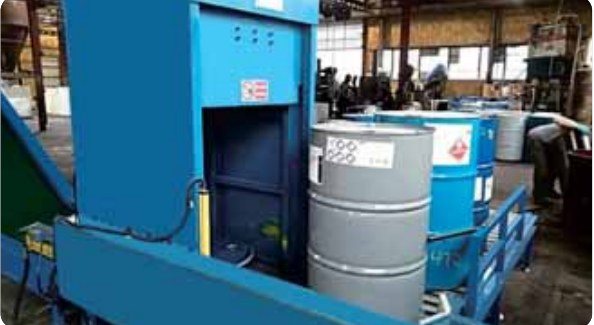

Unlike a standard drum crusher, this set needs no manual loading of drums or removal of the crushed disc. Once a drum is placed on the conveyor, the whole cycle runs automatically: feeding, crushing, returning the ram and ejecting the flattened disc.
It is made up of a roller conveyor, the crushing unit and a hydraulic ejector, interlocked electrically so the conveyor stops and starts with the crusher. It crushes almost all metal drums and barrels of up to 220 litres, and the chamber can be made to suit other drum sizes. An infrared sensor stops the process immediately if anyone approaches the compression chamber.
For plants and yards that handle large numbers of scrap drums every day, it saves storage space, transport and labour costs.
Features
- Fully automatic operation
- Liquid drainage channel to collect residual liquid and keep the area dry
- Spikes on the platen to puncture drums for easier crushing
- PLC control
- Long ram stroke for a high compaction ratio
Typical materials
Oil drums, paint drums and other steel or aluminium drums and barrels.
Specification
| Manufacturer | Sinobaler |
|---|---|
| CE marking | CE marked by the manufacturer |
| Warranty | 12 months |
| Drum size | up to 220 litres |
Models & specifications
| Model | SVB2-MD-400A |
|---|---|
| Feed opening (L × H) | 760 × 1000 mm |
| Crushed drum height | 100–120 mm |
| Motor power | 7.5 kW |
| Conveyor (L × W) | 3000 × 760 mm |
| Conveyor motor | 1.5 kW |
| Machine weight (approx.) | 2400 kg |
Manufacturer's figures, which can change without notice. Bale weights depend on your material, and bale sizes don't allow for expansion after the bale is ejected. We'll confirm the exact specification with your quote.
