New Made to order
Drum Crusher
Drum Crushers · Sinobaler SVB2-MD-300 / SVB2-MD-400
Flattens steel and aluminium drums up to 220 litres to around 100 mm, at 60–70 drums an hour.
POA — price on application
Enquire about this machine Client sign-in for prices
Got an old machine? Trade it in towards this one →
Not sure this is the right machine? Try our baler selector →
New machine with a 12-month warranty, serviced and supported by our own engineers.
Made to order: ask us about lead times, options, delivery and installation.
About this machine
Also known as a drum press or barrel flattener. It uses hydraulic pressure to flatten metal drums and barrels of up to 220 litres, so empties take up a fraction of the space and are cheaper to store and move as scrap.
It handles up to 60–70 drums an hour and, like our other vertical balers, is operated by one person.
Features
- Liquid drainage channel to collect residual liquid from drums
- Metal blocker to position the drum centrally in the chamber
- Spikes on the platen to puncture drums and release trapped air, for more efficient and safer crushing
- Push-button electric controls
- Long stroke for a high compaction ratio
Typical materials
Oil drums, paint drums and other steel or aluminium drums and barrels.
Specification
| Manufacturer | Sinobaler |
|---|---|
| CE marking | CE marked by the manufacturer |
| Warranty | 12 months |
| Drum size | up to 220 litres |
| Output | up to 60–70 drums an hour |
Models & specifications
| Model | SVB2-MD-300 | SVB2-MD-400 |
|---|---|---|
| Feed opening (L × H) | 760 × 1000 mm | 760 × 1000 mm |

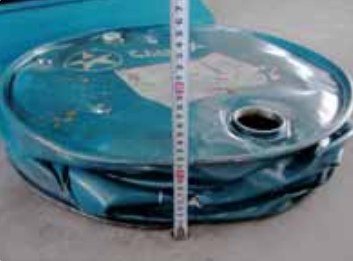

| Crushed drum height | 100–130 mm | 80–100 mm |
| Motor power | 5.5 kW | 7.5 kW |
| Cycle time (unloaded) | 39 s | 36 s |
| Machine weight (approx.) | 960 kg | 1000 kg |
Manufacturer's figures, which can change without notice. Bale weights depend on your material, and bale sizes don't allow for expansion after the bale is ejected. We'll confirm the exact specification with your quote.
