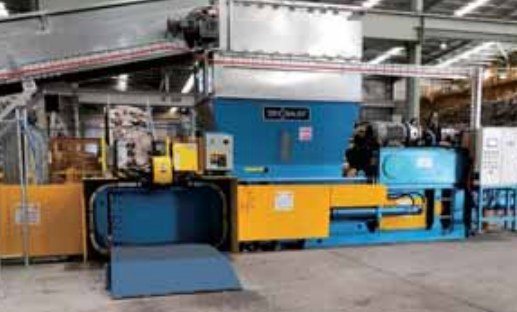

L-Type Two-Ram Automatic Horizontal Baler
Fully Automatic Balers · Sinobaler SHBA2-600L / 1000L / 1200L
Two-ram automatic baler for high-volume, mixed recyclables, with wire or plastic strapping. Up to 18 t/h.
POA — price on application
Enquire about this machine Client sign-in for prices
Got an old machine? Trade it in towards this one →
Not sure this is the right machine? Try our baler selector →
New machine with a 12-month warranty, serviced and supported by our own engineers.
Made to order: ask us about lead times, options, delivery and installation.
About this machine
An automatic horizontal baler for almost all recyclable waste. Compared with a single-ram automatic baler, the separate ejector ram means you can switch materials without cross-contamination, for example baling textiles that must not be cut by the ram cutter. A pre-compression lid can be added for more output.
Its separate strapping unit at the bale exit makes very dense bales that are easy to handle and transport, with a choice of wire or plastic strapping. That suits waste management facilities baling large volumes of mixed material every day, animal fodder producers who need plastic strapping, and municipal waste, where wire getting into the strapping slots is no longer a problem.
Features
- Automatic strapping system: wire, plastic or dual tying
- Variable number of ties for different materials
- Replaceable Hardox 450 guide liners in the compression chamber
- Mitsubishi or Siemens PLC with an internet connection to Sinobaler for remote programming and diagnosis
- Touch screen showing machine actions and sensor status
- Multi-material PLC programs to optimise bale density and capacity
- Bale separating door in the baling chamber for neat, well-shaped bales
- Bale discharge platform
- Options: pre-compression lid, oil heater, air or water cooling, plastic strapper, dual tying strapper, chain-driven conveyor
Typical materials
Cardboard (OCC), cartons, paper, shredded paper, newspaper, RDF, MSW, fibre, hay and straw, plastic film, hard plastic, PET bottles, HDPE containers, steel cans, municipal waste and other recovered materials.
Specification
| Manufacturer | Sinobaler |
|---|---|
| CE marking | CE marked by the manufacturer |
| Warranty | 12 months |
Models & specifications
| Model | SHBA2-600L | SHBA2-1000L | SHBA2-1200L A | SHBA2-1200L B |
|---|---|---|---|---|
| Feed opening (L × W) | 1600 × 1020 mm | 2000 × 1020 mm | 2000 × 1020 mm | 2000 × 1020 mm |
| Bale size (L × W × H) | 1100 × 1100 × 750 mm | 1400 × 1100 × 750 mm | 1400 × 1100 × 1100 mm | 1400 × 1100 × 1100 mm |
| Bale weight (cardboard) | 500–600 kg | 650–750 kg | 900–1000 kg | 900–1000 kg |
| Output (cardboard) | 5–8 t/h | 8–12 t/h | 10–14 t/h | 12–18 t/h |
| Motor power | 22 kW | 45 kW | 55 kW | 2 × 30 kW |
| Compression cycle (unloaded) | 18 s | 18 s | 22 s | 15 s |
| Strapping | Wire or plastic | Wire or plastic | Wire or plastic | Wire or plastic |
| Machine weight (approx.) | 18000 kg | 21000 kg | 22500 kg | 23000 kg |
Manufacturer's figures, which can change without notice. Bale weights depend on your material, and bale sizes don't allow for expansion after the bale is ejected. We'll confirm the exact specification with your quote.
