Metal Scrap Briquetting Baler
Metal Balers · Sinobaler SHB1-WSB-F-1000A / 1000B
Fully automatic press for oil filters, cans, chips and small metal scrap, at over 10:1 compression.
POA — price on application
Enquire about this machine Client sign-in for prices
Got an old machine? Trade it in towards this one →
Not sure this is the right machine? Try our baler selector →
New machine with a 12-month warranty, serviced and supported by our own engineers.
Made to order: ask us about lead times, options, delivery and installation.
About this machine
A briquetting baler for small metal scrap such as oil filters, aluminium and steel cans, and iron chips. High press force and a compact compression chamber crush the scrap into tight, square blocks that hold their shape with no strapping or bagging. It is also known as an oil filter baler or metal can baler.
It is fully automatic under PLC control: when the chamber is full, the compression cylinder crushes the load, the ejection cylinder pushes the block out, and a hydraulic sliding door opens at the output. A feed conveyor can be interlocked with the baler for automatic feeding.
With a compression ratio of more than 10:1, it saves transport and storage space for metal product manufacturers, metal waste collectors and can recyclers. Custom versions can be built to your output and block size.
Features
- Fully automatic compressing and ejection
- Liquid drainage tray to collect oil and liquid squeezed from filters and cans
- PLC control
- Closed-end door for thoroughly compacted blocks
- Push-button electric controls

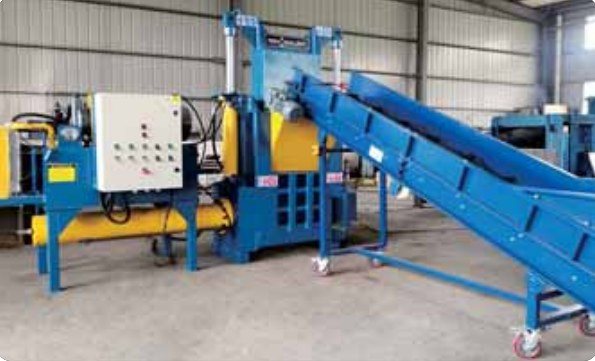

- Optional feed conveyor, interlocked with the baler
Typical materials
Oil filters, steel cans, aluminium cans, iron chips and small metal containers.
Specification
| Manufacturer | Sinobaler |
|---|---|
| CE marking | CE marked by the manufacturer |
| Warranty | 12 months |
| Compression ratio | over 10:1 |
Models & specifications
| Model | SHB1-WSB-F-1000A | SHB1-WSB-F-1000B |
|---|---|---|
| Feed opening (L × W) | 700 × 300 mm | 1100 × 300 mm |
| Block size (W × H, length variable) | 300 × 300 mm | 300 × 300 mm |
| Overall length | 3200 mm | 3600 mm |
| Motor power | 18.5 kW | 18.5 kW |
| Machine weight (approx.) | 4500 kg | 4800 kg |
Manufacturer's figures, which can change without notice. Bale weights depend on your material, and bale sizes don't allow for expansion after the bale is ejected. We'll confirm the exact specification with your quote.
