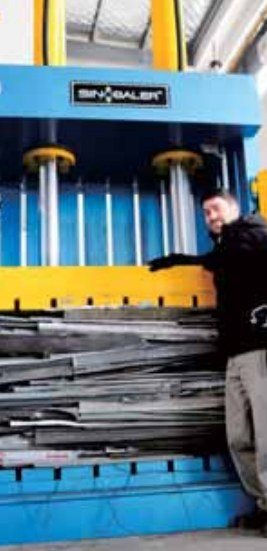

Heavy Duty Dual-Ram Baler
Vertical Balers · Sinobaler SVB2-T-800 to SVB2-T-2000
Twin-ram vertical baler with 80–200 tonnes press force for fibre, hard plastics and metal profiles.
POA — price on application
Enquire about this machine Client sign-in for prices
Got an old machine? Trade it in towards this one →
Not sure this is the right machine? Try our baler selector →
New machine with a 12-month warranty, serviced and supported by our own engineers.
Made to order: ask us about lead times, options, delivery and installation.
About this machine
Heavy-duty vertical balers with two rams and 80 to 200 tonnes of press force. They are built for high-rebound, high-strength materials, and also handle ordinary soft material when you need very dense bales to fill containers.
Typical users include natural fibre exporters, synthetic fibre recyclers, metal panel and profile recyclers and hard plastics recyclers.
Features
- Dual-ram design keeps the platen level and protects the rams
- Chain bale ejector
- Adjustable bale height
- Push-button electric controls
- Optional retainer claws
- Optional hydraulic chamber door
- Four chamber door layouts: front, front and back, front and one side, or all four sides
Typical materials
Cardboard, vehicle bumpers, palm fibre, coconut (coir) fibre, synthetic fibre, TV and computer casings, aluminium sheet and profiles, and hard plastic tubes.
Specification
| Manufacturer | Sinobaler |
|---|---|
| CE marking | CE marked by the manufacturer |
| Warranty | 12 months |
| Press force | 80–200 tonnes (depending on model) |
Models & specifications
| Model | SVB2-T-800 | SVB2-T-1200 A | SVB2-T-1200 B | SVB2-T-1500 A | SVB2-T-1500 B | SVB2-T-2000 A | SVB2-T-2000 B |
|---|---|---|---|---|---|---|---|
| Feed opening (L × H) | 1520 × 650 mm | 1100 × 500 mm | 1520 × 650 mm | 1100 × 500 mm | 1520 × 650 mm | 1100 × 500 mm | 1520 × 650 mm |
| Bale size (L × W × H) | 1520 × 760 × 450–1000 mm | 1100 × 700 × 300–1000 mm | 1520 × 760 × 450–1000 mm | 1100 × 700 × 400–1100 mm | 1520 × 760 × 550–1100 mm | 1100 × 700 × 400–1100 mm | 1520 × 760 × 550–1100 mm |
| Bale weight (hard plastic) | 260–550 kg | 140–440 kg | 310–650 kg | 210–550 kg | 420–800 kg | 270–700 kg | 520–1000 kg |
| Bale weight (coir fibre) | 125–270 kg | 70–220 kg | 145–300 kg | 100–260 kg | 190–355 kg | 120–300 kg | 210–400 kg |
| Motor power | 15 kW | 18.5 kW | 18.5 kW | 22 kW | 22 kW | 30 kW | 30 kW |
| Number of ties | 7 | 5 | 7 | 5 | 7 | 5 | 7 |
| Cycle time (unloaded) | 48 s | 47 s | 47 s | 47 s | 47 s | 35 s | 35 s |
| Machine weight (approx.) | 3800 kg | 5000 kg | 5800 kg | 5300 kg | 7000 kg | 6000 kg | 8500 kg |
Manufacturer's figures, which can change without notice. Bale weights depend on your material, and bale sizes don't allow for expansion after the bale is ejected. We'll confirm the exact specification with your quote.
