Long Stroke Baler
Vertical Balers · Sinobaler SVBB2-300 to SVBB2-700
Vertical baler with an extra-long stroke for PET bottles and cans, with a drainage channel for liquids.
POA — price on application
Enquire about this machine Client sign-in for prices
Got an old machine? Trade it in towards this one →
Not sure this is the right machine? Try our baler selector →
New machine with a 12-month warranty, serviced and supported by our own engineers.
Made to order: ask us about lead times, options, delivery and installation.
About this machine

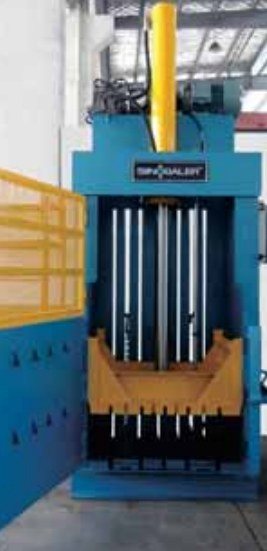

A vertical baler with a long ram stroke for hollow items such as plastic bottles and drinks cans, compressing them into tight bales for storage and transport. The long stroke gives volume reductions of up to 25:1.
It bales and drains in one step: a liquid drainage channel collects what is squeezed out of bottles and cans, keeping the area cleaner and safer. Standard models range from 30 to 70 tonnes press force, and the chamber size can be tailored to your needs.
Features
- Long stroke for full compaction of hollow items
- Chain bale ejector
- Liquid drainage channel to collect residual liquid
- Adjustable bale height
- Push-button electric controls
- Fixed retainer claws to stop material springing back
- Optional sliding door that lifts automatically with the platen
- Optional hydraulic chamber door
Typical materials
PET bottles, disposable plastic tableware, HDPE/PP containers and drinks cans.
Specification
| Manufacturer | Sinobaler |
|---|---|
| CE marking | CE marked by the manufacturer |
| Warranty | 12 months |
| Press force | 30–70 tonnes (depending on model) |
Models & specifications
| Model | SVBB2-300 | SVBB2-400 | SVBB2-500 | SVBB2-700 |
|---|---|---|---|---|
| Feed opening (L × H) | 800 × 400 mm | 1000 × 450 mm | 1100 × 500 mm | 1500 × 500 mm |
| Bale size (L × W × H) | 800 × 600 × 200–800 mm | 1000 × 600 × 300–900 mm | 1100 × 700 × 300–1000 mm | 1500 × 760 × 300–1000 mm |
| Bale weight (PET bottles) | 35–100 kg | 50–140 kg | 70–230 kg | 100–380 kg |
| Motor power | 7.5 kW | 11 kW | 11 kW | 15 kW |
| Number of ties | 4 | 4 | 5 | 5 |
| Cycle time (unloaded) | 38 s | 40 s | 37 s | 45 s |
| Machine weight (approx.) | 1300 kg | 1650 kg | 2300 kg | 3300 kg |
Manufacturer's figures, which can change without notice. Bale weights depend on your material, and bale sizes don't allow for expansion after the bale is ejected. We'll confirm the exact specification with your quote.
