New Made to order

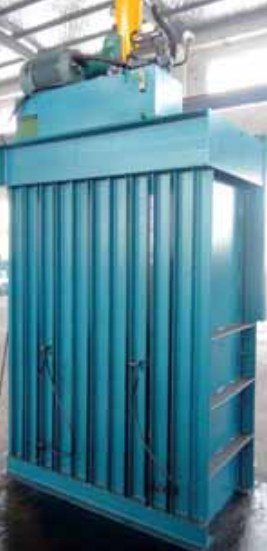

Mill Size Baler
Vertical Balers · Sinobaler SVBS2-300 / SVBS2-500
Vertical down-stroke baler for cardboard, film and paper, making mill-size bales of up to 450 kg.
POA — price on application
Enquire about this machine Client sign-in for prices
Got an old machine? Trade it in towards this one →
Not sure this is the right machine? Try our baler selector →
New machine with a 12-month warranty, serviced and supported by our own engineers.
Made to order: ask us about lead times, options, delivery and installation.
About this machine
One of Sinobaler's most popular vertical balers. It produces mill-size bales of cardboard, film, paper and other packaging, reducing waste volume by up to 8:1 so you save on space, handling and transport.
Six versions are available in two series, so the bale size and weight can be matched to your material, your site and the mill or merchant you sell bales to.
Features
- Chain bale ejector: the bale is lifted out of the chamber by chain for easy removal
- Sliding door that lifts automatically as the platen rises, saving space and time
- Adjustable bale height for different bale sizes and weights
- Push-button electric controls for the platen and bale ejection
- Optional retainer claws to stop the pressed material springing back
- Optional hydraulic chamber door, opened and closed at the press of a button
Typical materials
Cardboard (OCC), film, corrugated cardboard, newspaper (ONP), mixed paper (OMG), office waste and other packaging.
Specification
| Manufacturer | Sinobaler |
|---|---|
| CE marking | CE marked by the manufacturer |
| Warranty | 12 months |
Models & specifications
| Model | SVBS2-300 A | SVBS2-300 B | SVBS2-300 C1 | SVBS2-300 C2 | SVBS2-500 A | SVBS2-500 B |
|---|---|---|---|---|---|---|
| Feed opening (L × H) | 800 × 500 mm | 1100 × 600 mm | 1520 × 680 mm | 1520 × 680 mm | 1100 × 600 mm | 1520 × 680 mm |
| Bale size (L × W × H) | 800 × 600 × 400–900 mm | 1100 × 760 × 500–900 mm | 1520 × 760 × 600–1120 mm | 1520 × 760 × 600–1120 mm | 1100 × 760 × 500–900 mm | 1520 × 760 × 450–1120 mm |
| Bale weight (cardboard) | 60–150 kg | 100–200 kg | 200–350 kg | 230–400 kg | 150–280 kg | 250–450 kg |
| Motor power | 5.5 kW | 5.5 kW | 7.5 kW | 7.5 kW | 7.5 kW | 11 kW |
| Number of ties | 4–6 | 4–7 | 5–7 | 5–7 | 4–6 | 5–7 |
| Cycle time (unloaded) | 38 s | 38 s | 44 s | 53 s | 42 s | 42 s |
| Machine weight (approx.) | 1500 kg | 1800 kg | 2500 kg | 2500 kg | 2400 kg | 2700 kg |
Manufacturer's figures, which can change without notice. Bale weights depend on your material, and bale sizes don't allow for expansion after the bale is ejected. We'll confirm the exact specification with your quote.
