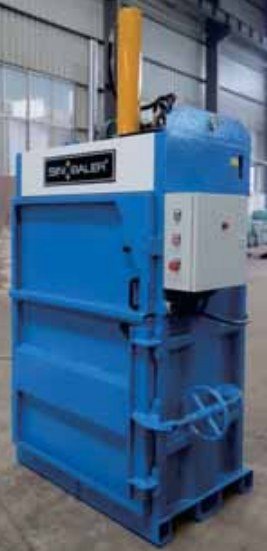

Mini Baler
Vertical Balers · Sinobaler SVB2-S-100 to SVB2-S-200
Compact, low-height baler for shops, hotels, offices and vessels. Bales from 20 to 150 kg.
POA — price on application
Enquire about this machine Client sign-in for prices
Got an old machine? Trade it in towards this one →
Not sure this is the right machine? Try our baler selector →
New machine with a 12-month warranty, serviced and supported by our own engineers.
Made to order: ask us about lead times, options, delivery and installation.
About this machine
Small vertical balers with up to 20 tonnes of press force, for places that produce smaller volumes of soft waste: shops, supermarkets, hotels, offices, hospitals and even ships (they are sometimes called marine balers).
They have a small footprint and low height for sites with limited space, and there is a wide-opening model for bulky items such as large cartons. Bales weigh from 20 kg to 150 kg, so they are easy to handle.
Features
- Chain bale ejector
- Small footprint and low height
- Liquid drainage channel
- Adjustable bale height
- Push-button electric controls
Typical materials
Paper, cardboard, film, textiles, cans, bottles and other soft packaging.
Specification
| Manufacturer | Sinobaler |
|---|---|
| CE marking | CE marked by the manufacturer |
| Warranty | 12 months |
| Press force | up to 20 tonnes |
Models & specifications
| Model | SVB2-S-100 A | SVB2-S-100 B | SVB2-S-150 | SVB2-S-200 A | SVB2-S-200 B |
|---|---|---|---|---|---|
| Feed opening (L × H) | 600 × 400 mm | 1000 × 380 mm | 600 × 400 mm | 600 × 400 mm | 800 × 400 mm |
| Bale size (L × W × H) | 600 × 400 × 200–500 mm | 1000 × 700 × 550–920 mm | 600 × 400 × 200–500 mm | 600 × 400 × 200–500 mm | 800 × 600 × 400–800 mm |
| Bale weight (cardboard) | 20–40 kg | 100–150 kg | 25–50 kg | 30–60 kg | 60–120 kg |
| Motor power | 3 kW | 3 kW | 3 kW | 4 kW | 4 kW |
| Number of ties | 4 | 4 | 4 | 4 | 4 |
| Cycle time (unloaded) | 24 s | 26 s | 29 s | 33 s | 38 s |
| Machine weight (approx.) | 600 kg | 850 kg | 700 kg | 800 kg | 1000 kg |
Manufacturer's figures, which can change without notice. Bale weights depend on your material, and bale sizes don't allow for expansion after the bale is ejected. We'll confirm the exact specification with your quote.
